Maintaining secure and reliable access to EC2 instances is important for any AWS infrastructure. However, there are times when due to unforeseen circumstances access is lost due to misconfigurations, network issues, or a security breach. In such cases, where the access is lost, we can regain access using AWS Systems Manager (SSM), which allows users to connect and run commands on an EC2 without the need for direct SSH or RDP connections. In this blog post, we will explore how to recover access to an EC2 instance using SSM, providing the steps and listing the importance of proactive measures to prevent such situations.
Ensure that the SSM agent is installed and running on the EC2 instance, as it facilitates communication with the Systems Manager service. SSM Agent is installed, by default, on Ubuntu Server 22.04 LTS, 20.04, 18.04, and 16.04 LTS 64-bit AMIs with an identifier of 20180627 or later.

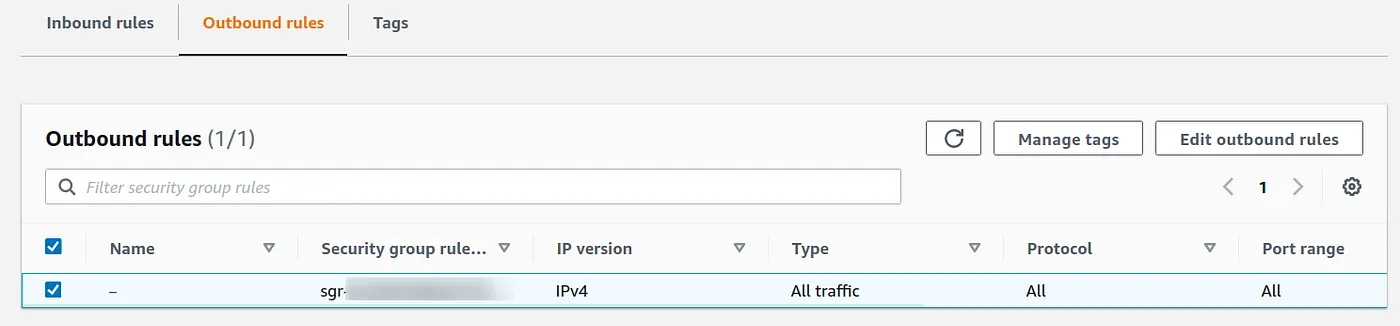

To connect with the EC2 instance it also requires outbound rules to have 0.0.0.0/0 on all TCP ports
How to Recover Access
There are two ways to connect using SSM one is from the EC2 Instance dashboard directly and the other is from AWS Systems Manager. The steps for both ways are mentioned below
- Ensure EC2 Instance Configuration for SSM:
Before attempting to recover access using SSM, confirm that the EC2 instance is properly configured: Verify that the instance has an IAM role attached, granting it the necessary permissions to communicate with SSM.
a. Ensure the AmazonSSMManagedInstanceCore policy is attached to the EC2 instance role
b. Ensure that AWS Organisations isn’t blocking any of the services that are required. Key services you need to allow in organizations are
ec2:* ec2messages:* ssm:* ssmmessages:* s3:*

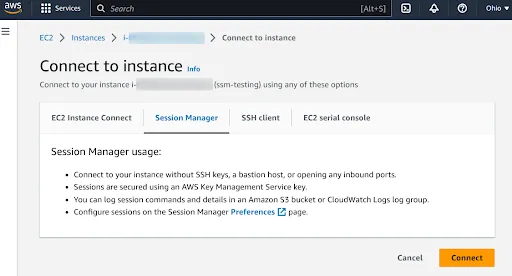

c. Once all the requirements are fulfilled. Select the Instance and click on Connect. Once the Connect to Instance page opens under the Session Manager click on Connect.
The SSM session will start and you will have access to the EC2 instance via the interactive shell.
- We can also connect to EC2 instance using AWS Systems Manager Console. Below are the steps
- In the AWS Systems Manager console, under Node Management select Session Manager. Once the Session Manager screen opens click on Start session

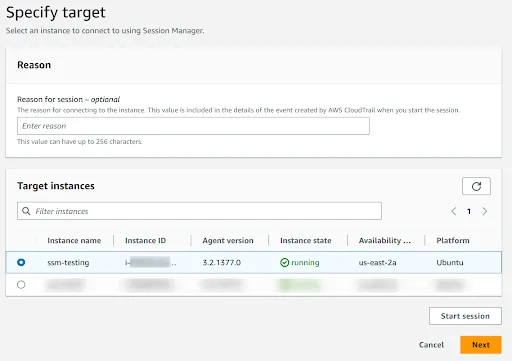

- Under Specify target select the specific EC2 instance you wish to recover access.
- On the EC2 instance details page, click on the “Start Session” button. This action will initiate an interactive shell session within the Systems Manager console, establishing a secure channel to execute commands on the EC2 instance.
- The next step is to mention a custom document to configure session settings, including duration, encryption, and logging. It is optional and go to the next page.
- On the Review and Launch page click on Start Session
- Once the SSM session starts, you will have access to the EC2 instance via the interactive shell.
- Diagnose and troubleshoot any issues that might have caused the access loss, such as firewall misconfigurations, SSH key problems, or user account issues.
- Rectify the identified issues and restore access to the EC2 instance.
Taking Proactive Measures
To prevent access issues in the future, consider implementing the following best practices:
- Review and update IAM roles and permissions to ensure the appropriate level of access for EC2 instances.
- Update the SSM agent on EC2 instances to benefit from new features and security enhancements.
- Implement strict security measures, such as regularly rotating SSH keys, enforcing strong password policies, and utilizing multi-factor authentication (MFA) where applicable.
- Audit and monitor EC2 instances for any suspicious activities or unauthorized access attempts.
- Implement network security groups and firewalls to restrict access to EC2 instances based on the principle of least privilege.
- By following these measures, you can significantly reduce the risk of losing access to EC2 instances and maintain a secure and robust infrastructure on AWS.
AWS Systems Manager offers a reliable and secure method for recovering access to EC2 instances through its SSM service. By leveraging SSM, you can regain control over instances without exposing them to external connections or requiring direct SSH or RDP access. This not only enhances security but also streamlines access management and troubleshooting processes. However, it is essential to establish proactive measures to prevent access loss, such as regularly reviewing IAM roles, keeping the SSM agent up to date, and implementing robust security practices.
In this blog, we will dive into the intriguing world of "Flaws Labs," a platform that simulates real-world attacks on AWS services. Our mission is to uncover these vulnerabilities, navigate through the attacks step by step, and diligently uncover the "flags" left in their wake. Through a detailed walk-through enhanced with screenshots, we'll decipher the tactics used by malicious actors, shedding light on why these attacks occur.
As we unravel these security challenges, we'll not only grasp the intricacies of these incidents but also discover the configurations and best practices essential for safeguarding your AWS environment.
Aim for Level1: Discover S3 bucket, list it's objects and the region of S3
The discription for Level1 says that - This level is buckets of fun. See if you can find the first sub-domain.
Let's begin with the steps

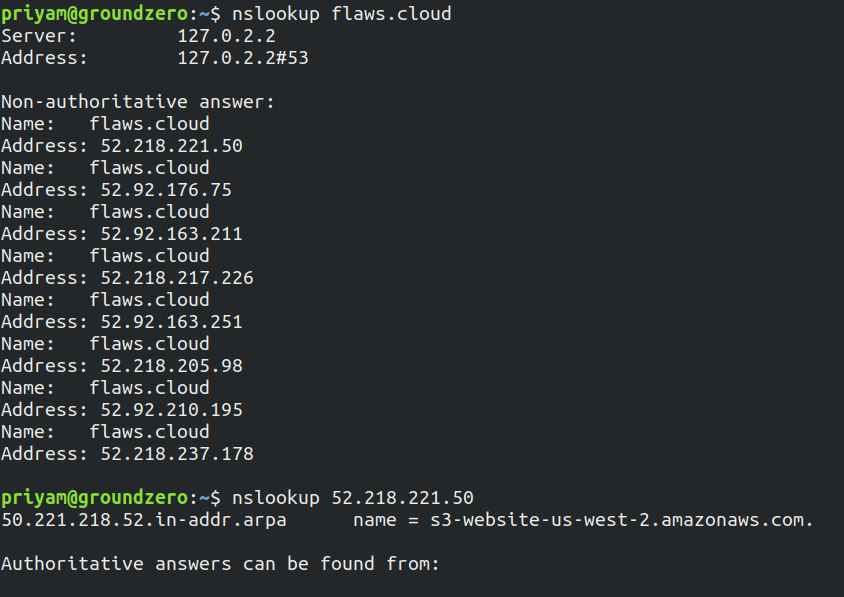

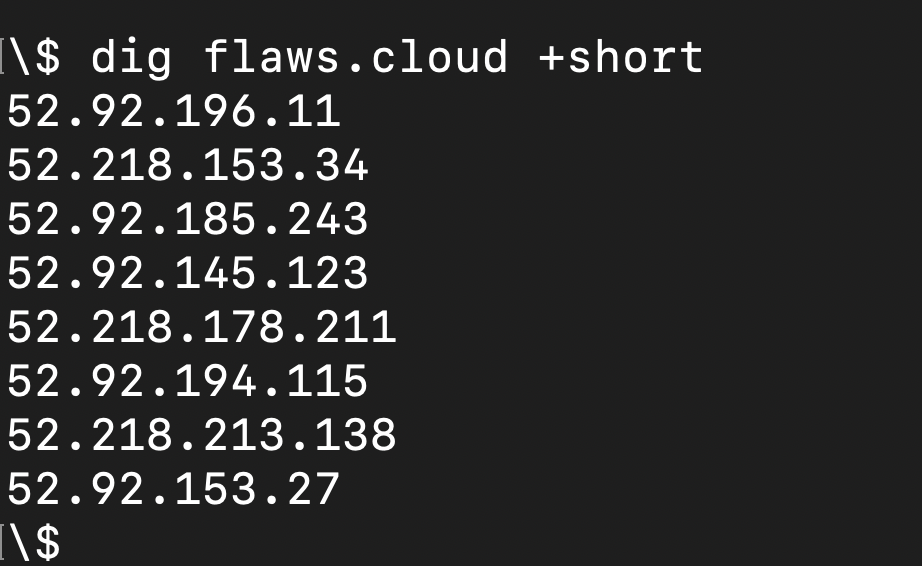

To find the IP address of http://flaws.cloud/ , let's use command line tool "dig"
S3 can be used for hosting static websites for details you can go through official documentation of AWS
To get more details about the server use Reverse DNS lookup to get the domain name
As the output shows "s3-website-us-west-2.amazonaws.com". This shows S3 buckets are being used and region is us-west-2

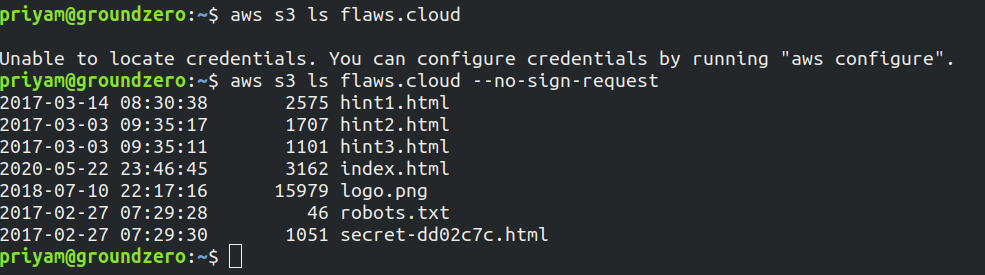

Now let's list the files of S3 bucket
It lists all the objects present in S3
Note: It will give error if AWS credentials are not configured in CLI so use the tag
--no-sign-request and this means that the bucket and/or its objects are configured to allow public access.

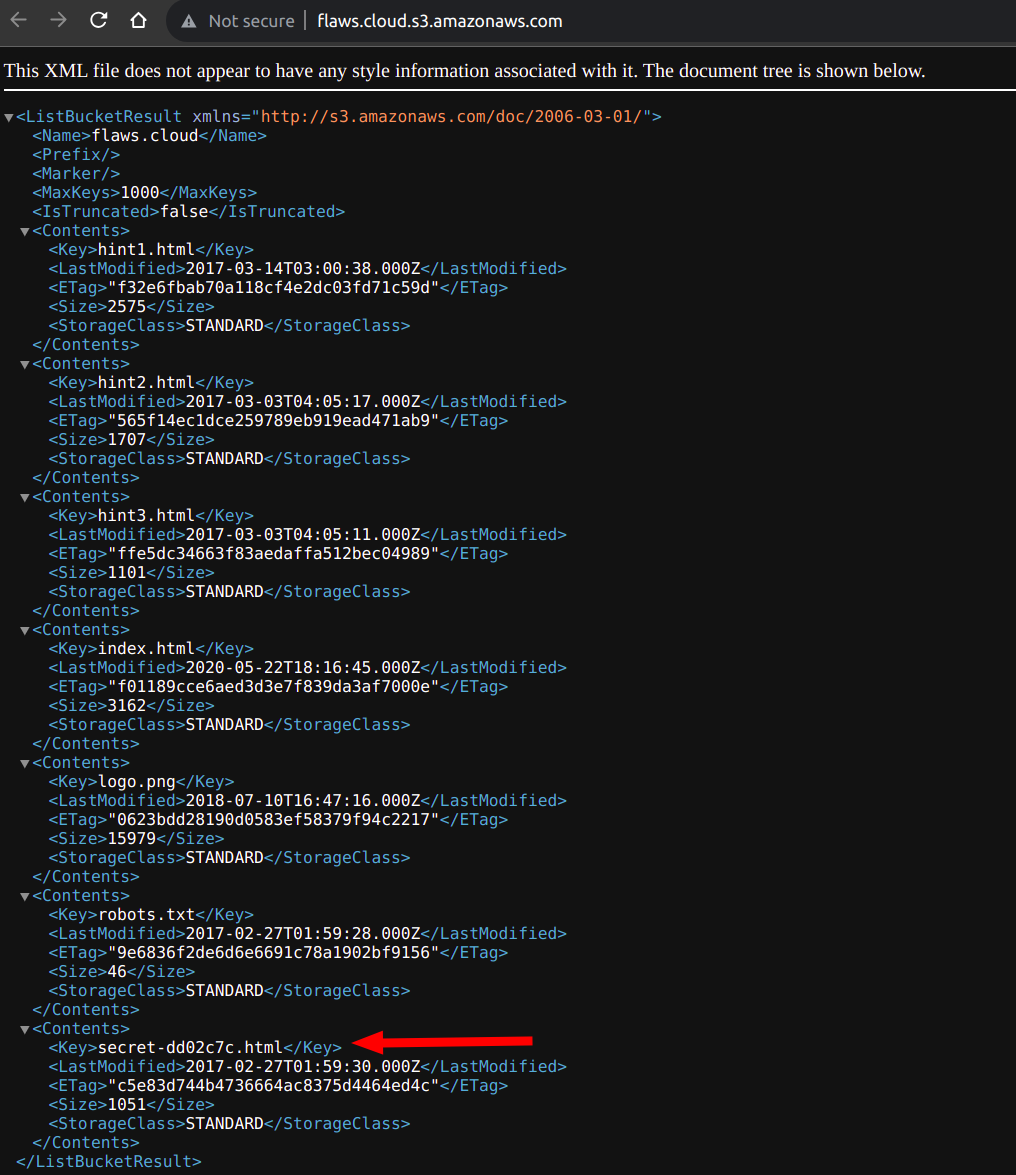

The objects can also be listed by just entering this URL in browser http://flaws.cloud.s3.amazonaws.com
- As we can see there is a file present with the name secret. Let's try accessing this as well in the browser

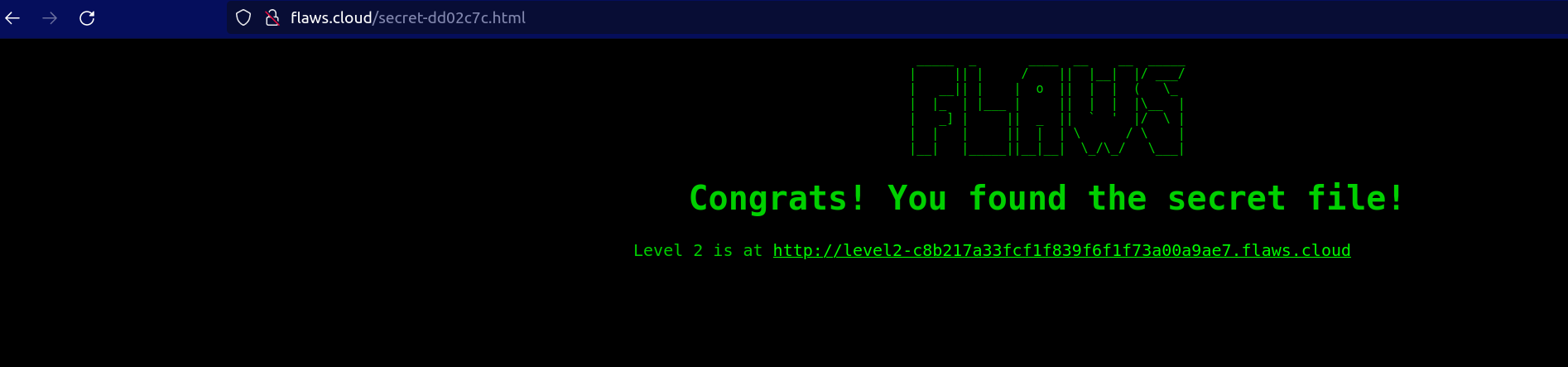

You have got link to Level2. Hence, the Level 1 challenge has been solved!
Why this attack happened?
For a static website, we have to set a policy as below which will allow to list the objects of bucket and nothing else.
Now the bucket flaws.cloud is likely to configured somewhat as below in which we have the permission to allow anyone to perform action "s3:ListBucket" on flaws.cloud bucket. this allowed to list all the files of S3 publicly
Directory listings of web servers shouldn't be allowed similarly Bucket listings should not be allowed.
Aim for level 2 List the S3 bucket objects using any AWS account
The description of Level 2 says that - The next level is fairly similar, with a slight twist. You're going to need your own AWS account for this. You just need the free tier.
Let's begin with the steps:
In this lab try again to list the objects of S3 bucket
An 'Access Denied' error occurred. Export your user's Access Key ID and Secret Access Key which has access to S3, and then run the command again to list S3 buckets.

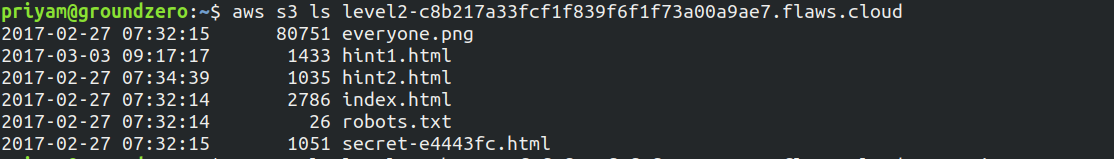

Once the keys are exported, again list the s3 bucket objects

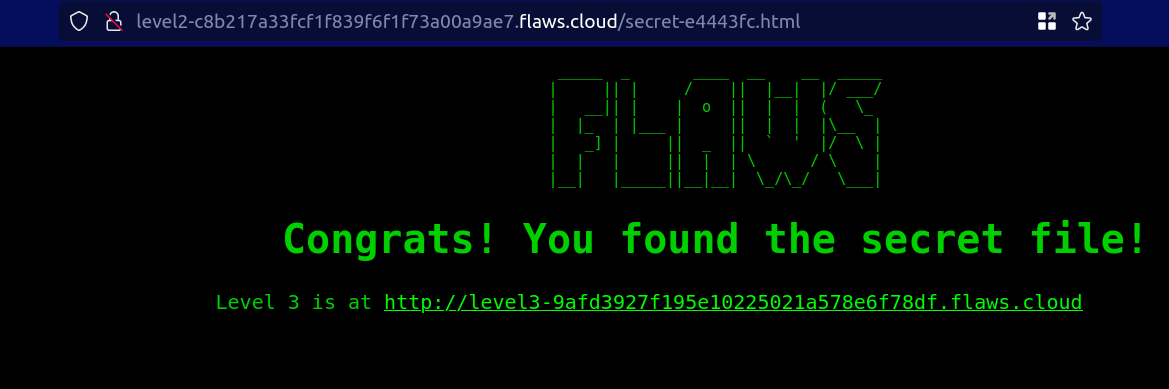

It will list the objects of the S3 bucket and one object with secret name is present. Paste the name in the URL and check, it gives the link to Level 3.
Why this attack happened?
S3 ACLs grant rights for specific AWS accounts or any set of predefined groups.
- Authenticated User groups: All AWS accounts have access (access via authenticated requests but can be authenticated by any AWS account in the world).
- Everyone (public access): Anyone can access, including unauthenticated requests.'
In the mentioned bucket, the objects were granted access to 'authenticated users,' meaning all AWS accounts are granted access to that S3 bucket, not just your AWS account. It is recommended to keep ACLs disabled, except when it is necessary to control access to each object individually. With ACLs disabled, we can use policies to manage access to all objects in the bucket.
Aim for Level 3: Find the AWS keys
Let's begin with the steps to find out the AWS keys:
In this lab at first let's check the domain and we can see there are a lot of files present

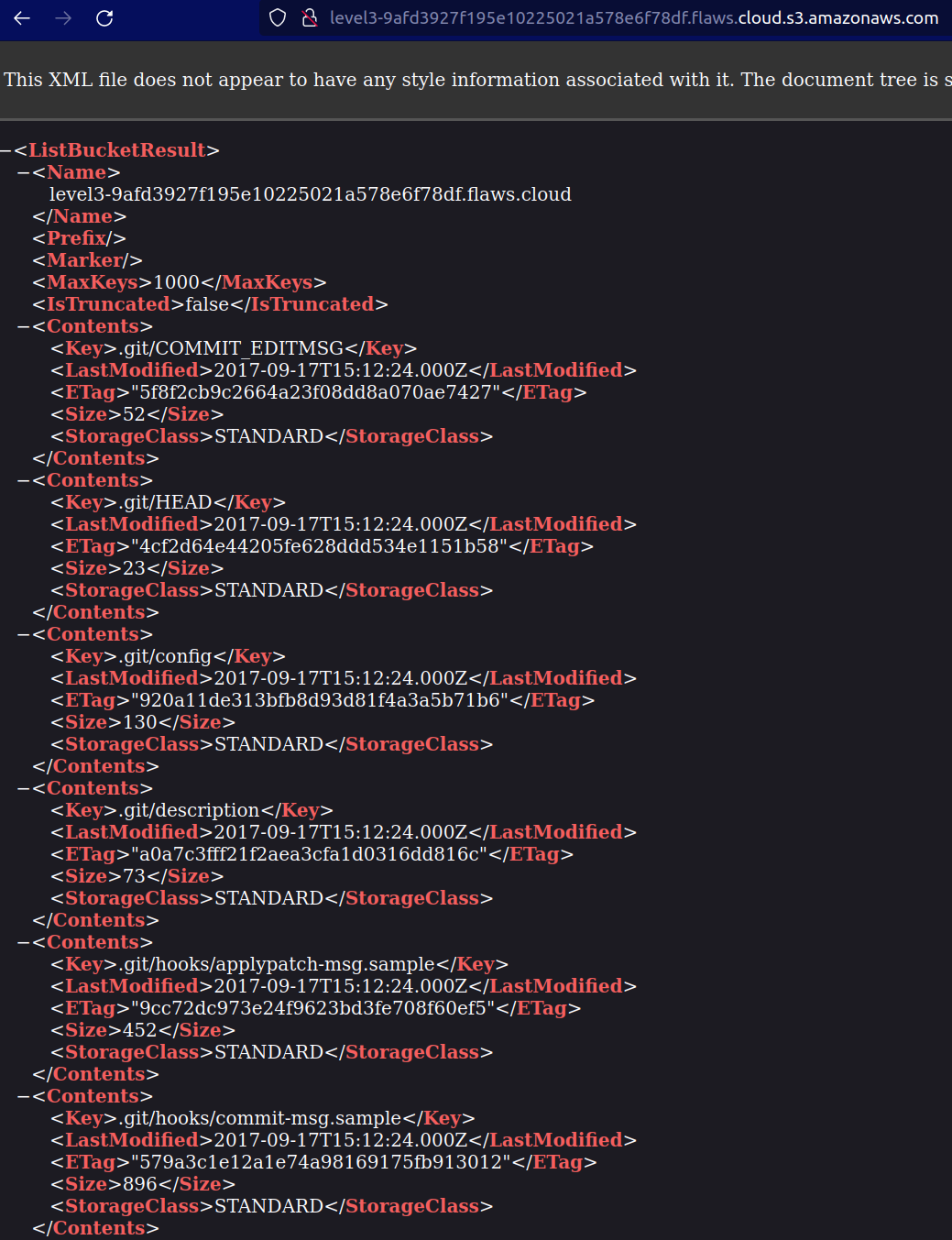

To check the files through the domain append .s3.amazonaws.com at end of
The files can be listed from the CLI as well using below command
aws s3api list-objects-v2 --bucket level3-9afd3927f195e10225021a578e6f78df.flaws.cloud --no-sign-request --region us-west-2

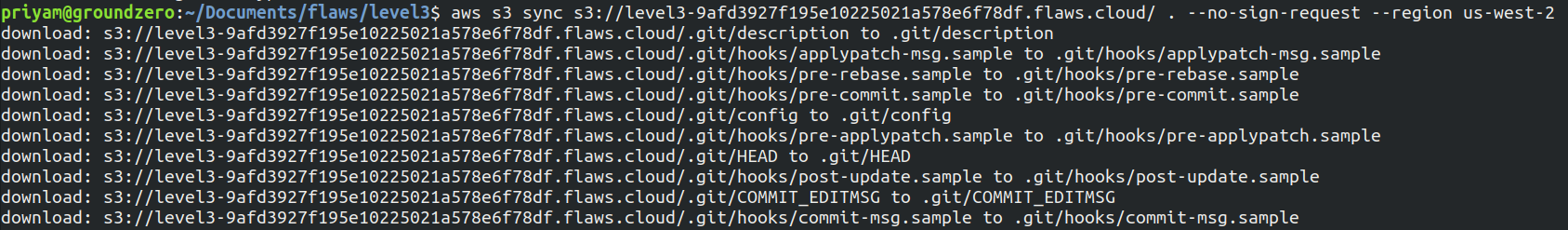

After this in the CLI I copied the files in a folder to play around and check the content present in the files
aws s3 sync s3://level3-9afd3927f195e10225021a578e6f78df.flaws.cloud/ . --no-sign-request --region us-west-2
aws s3 sync is used instead of
aws s3 cp?
aws s3 cp will copy all the files to the destination even if it is present. Also it will not delete the files present in the destination if they are removed from the source.
aws s3 sync will check the files which are updated or not present and copy those. it will delete the files which are present in the destination but removed from the source, if tag --delete is used.
The sync command is designed to handle keeping two folders in sync while copying the minimum amount of data.

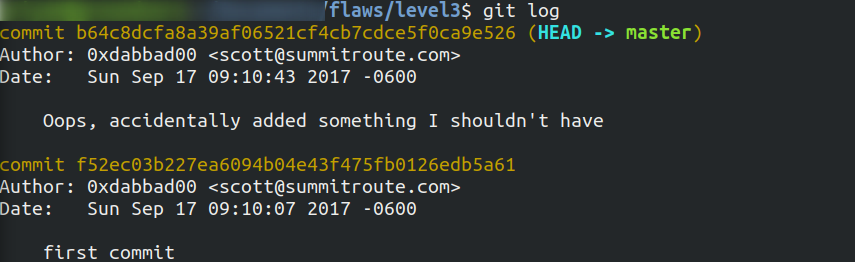

We can see a .git file so let's fetch the logs by using the command
Now we will switch between the commits by
After the commit is switched to first commit, lets list the contents.

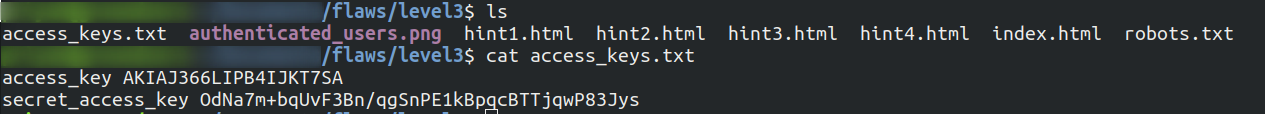

We can see a file named
access_keys.txtpresent and once we check the content it has access keys and secret key of AWS.

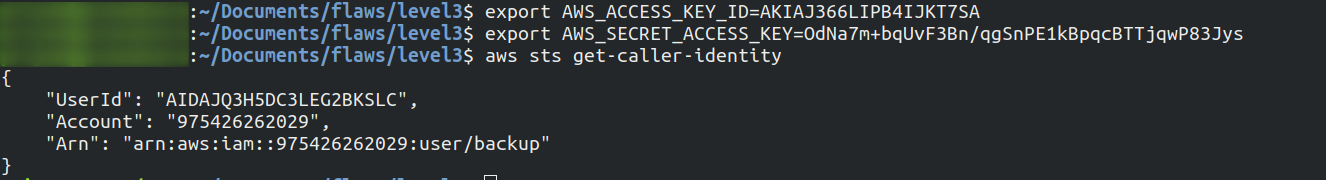

Let's export these keys in our terminal
get-caller-identitywe got to know it is attached to a profile named

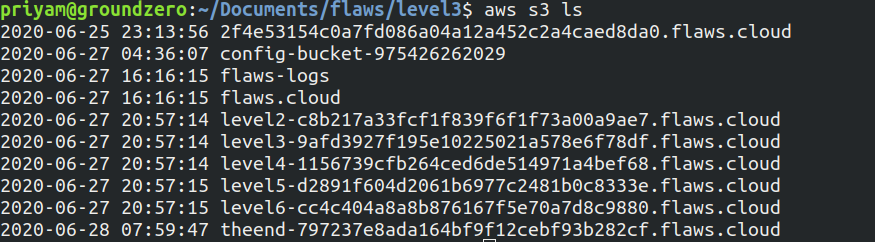

After exporting the AWS keys we can list the files present in S3 bucket
Why this attack happened?
As IAM credentials, were committed to Git repositories. IAM credentials, as well as any other sensitive credentials, should never be committed to Git repositories. If IAM credentials are ever exposed, it is crucial to promptly rotate the credentials to maintain security.
Git repositories should not be publicly accessible on websites. Keeping repositories private helps protect sensitive information and ensures that code and credentials are not exposed to unauthorized users.
The Bucket listings should not be allowed.

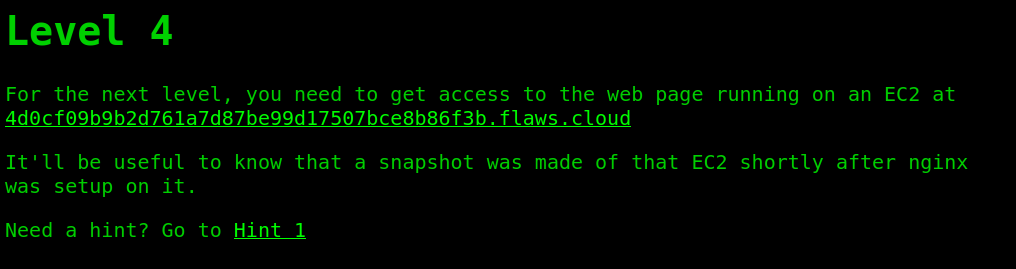

In this level we have to get access to the page served by the EC2 machine.

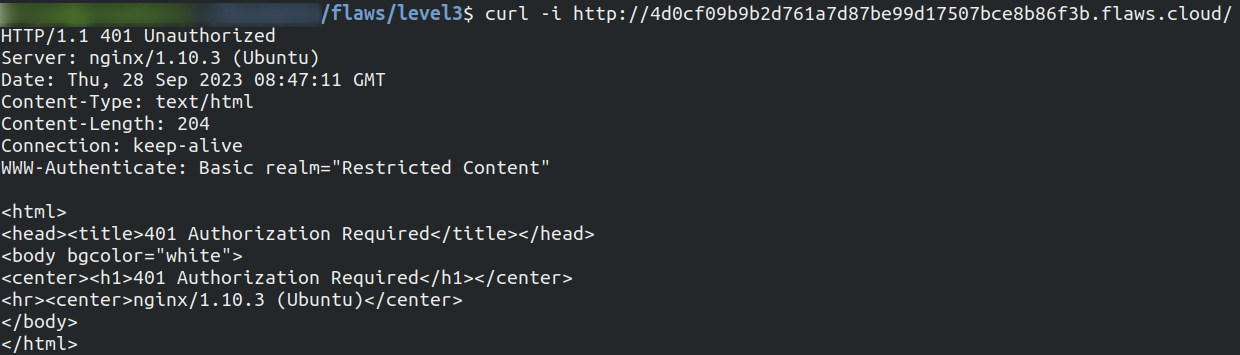

Run a curl command to get the information for the mentioned location of web page running
The web page is running on nginx 1.10.0

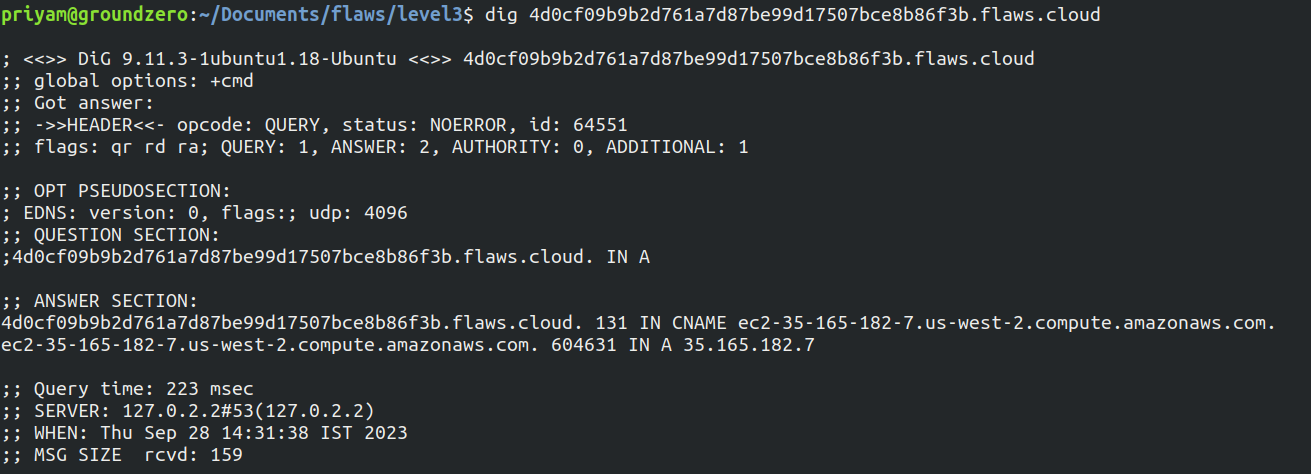

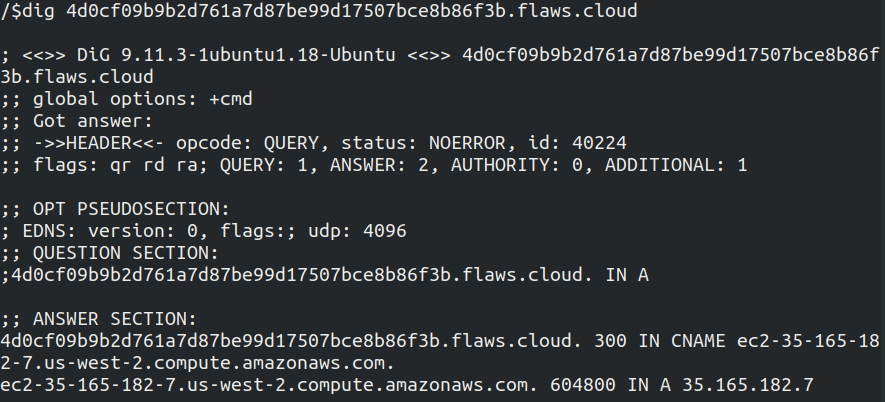

Using dig command we come to know that the EC2 machine is running in us-west-2 region
Configure the Access key and secret key we got in level 3 if not configured yet.
Run the describe command to fetch additional information about the instance
aws ec2 describe-instances --region us-west-2 --profile flaws | jq '.Reservations.Instances'
This gives a plenty of information about the EC2 instance such as private IP address, Keyname and interesting thing volume id. Let's explore more.

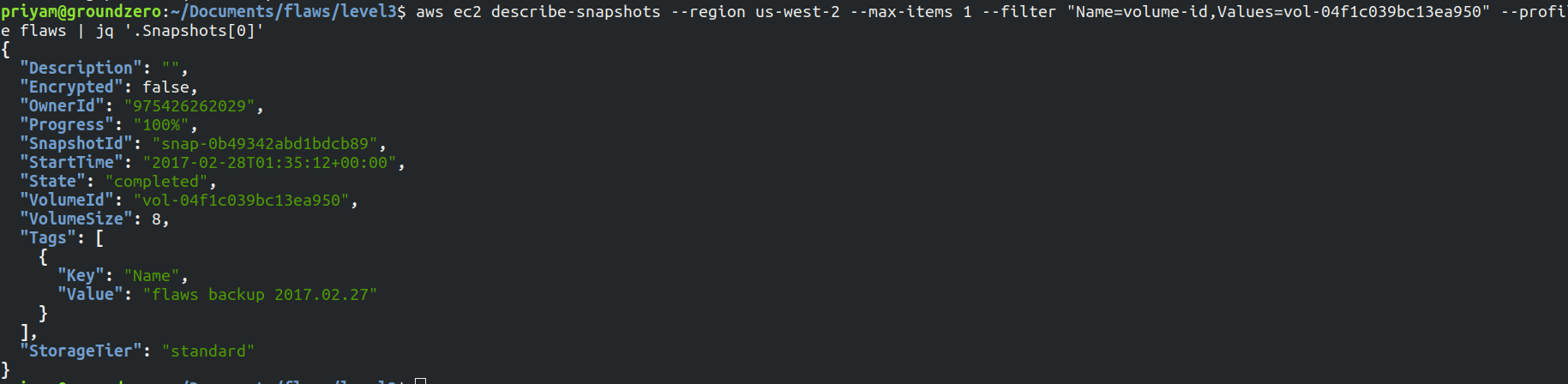

Now run the describe-snapshots command to get the information about the snapshots
aws ec2 describe-snapshots --region us-west-2 --max-items 1 --filter "Name=volume-id,Values=vol-04f1c039bc13ea950" --profile flaws | jq '.Snapshots'

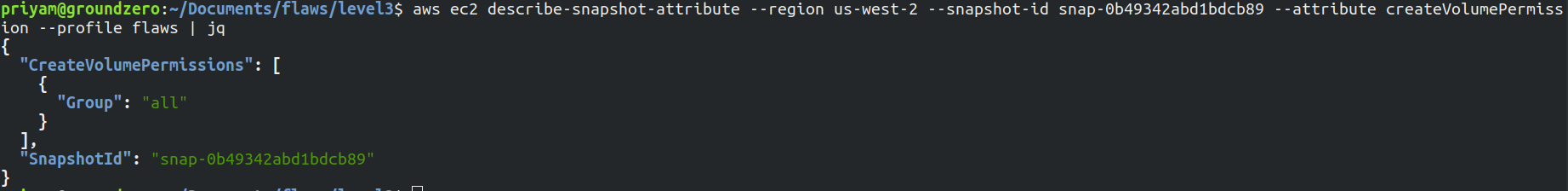

To check the permissions of the snapshot let's run the below command
aws ec2 describe-snapshot-attribute --region us-west-2 --snapshot-id snap-0b49342abd1bdcb89 --attribute createVolumePermission --profile flaws | jq
As we can see the snapshot is public as it shows all in group instead of a particular ID of AWS account.

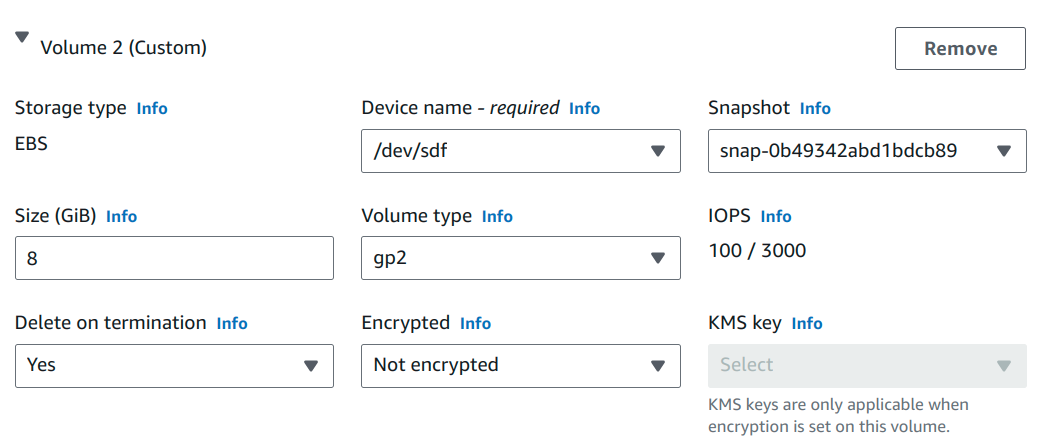

- To explore snapshot further I created an EC2 instance in us-west-2 region. Then attached the snapshot to the machine.
While attaching the snapshot it takes few minutes to list the required snapshot storage name: snap-0b49342abd1bdcb89 set device: /dev/sdf

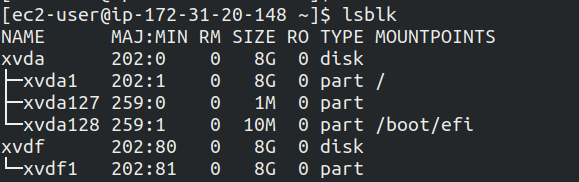

- Now SSH into the machine and list drives
To check the information of drive xvdf1
sudo file -s /dev/xvdf1
To mount the drive run the below command
sudo mount /dev/xvdf1 /mnt

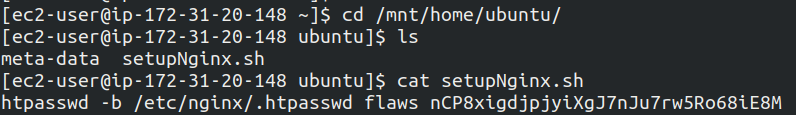

On changing the directory to /mnt/home/ubuntu a file with name setupNginx is present with username and password

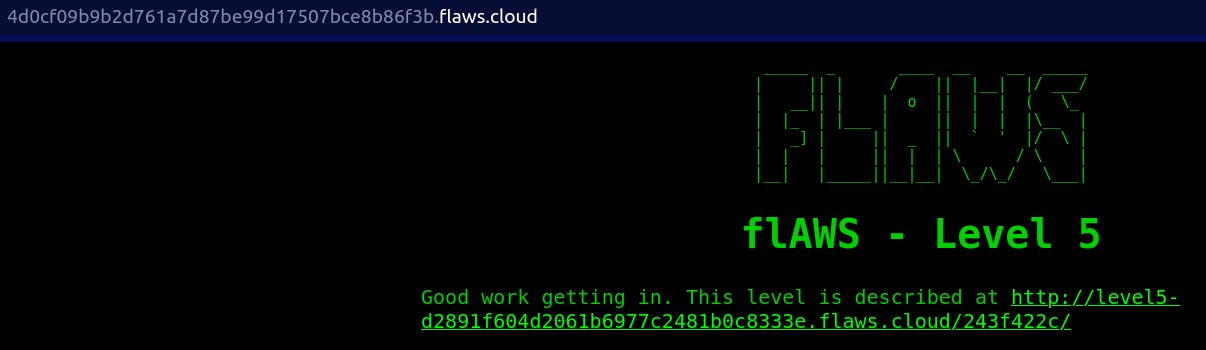

Enter the username and password on this URL
4d0cf09b9b2d761a7d87be99d17507bce8b86f3b.flaws.cloud and it will show the level is cleared
Why the attack happened?
The EBS snapshots were public and it should be shared with only the AWS accounts you trust. It can be shared with everyone only when we really need to publish a snapshot publicly for everyone to use, which kind of most people would not do.
Also encryption can be used as an extra layer against configurations mistakes. So that KMS can be used to enforce sharing restrictions.
The secrets were stored in plain text due to which we got to know the username and password instead a service can be used which is designed for managing secrets.
Aim of this lab is to find access to a bucket with a hidden directory.
- Let's test the proxy and see if it works as it is mentioned in lab

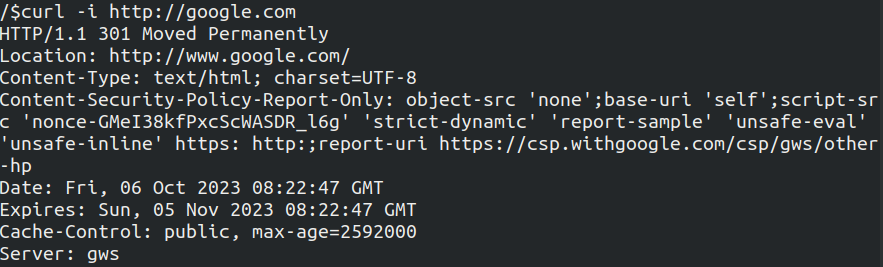

At first I made a request to simple
I have not shown all the headers but we can see it gives 301 and the server is gws which stands for google web server.
Now we will make the request to google.com but appending after proxy
Over here we can see 301 again but we also get the the server as nginx and this time the EC2 instance made the request.
To further confirm this let's run it with dig command
We can see in the answer section in the screenshot above it mentions EC2 and the region is us-west-2
- In this step we will use metadata service of EC2 Instance
What is metadata service?
AWS provides a default IP address (169.254.169.254) that can be used to query the EC2 instance metadata from within a running EC2 instance

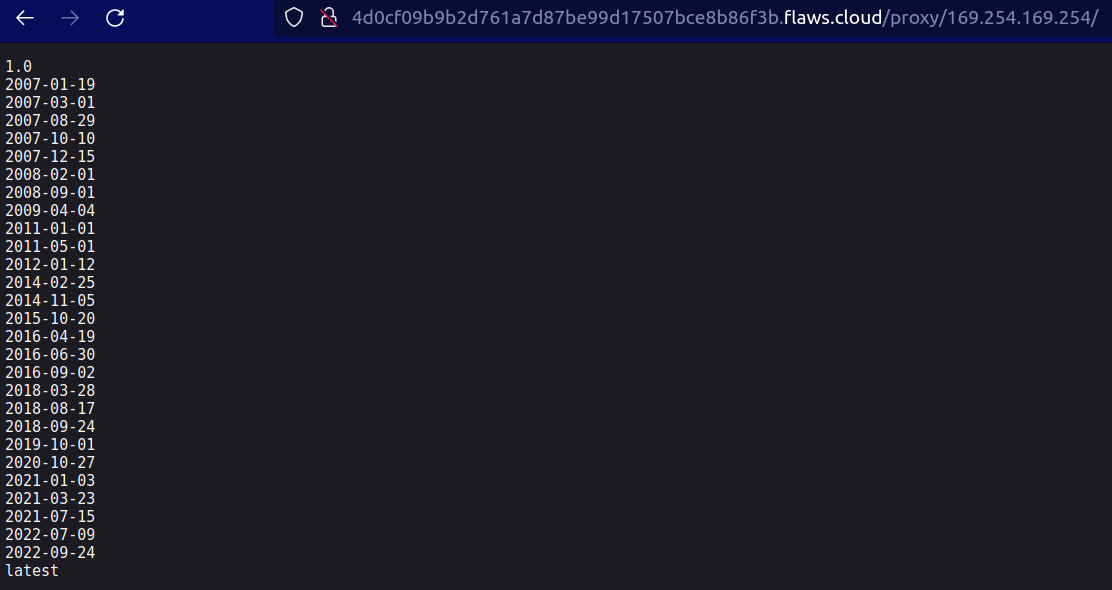

On appending the IPv4 address after proxy we can see a list of files

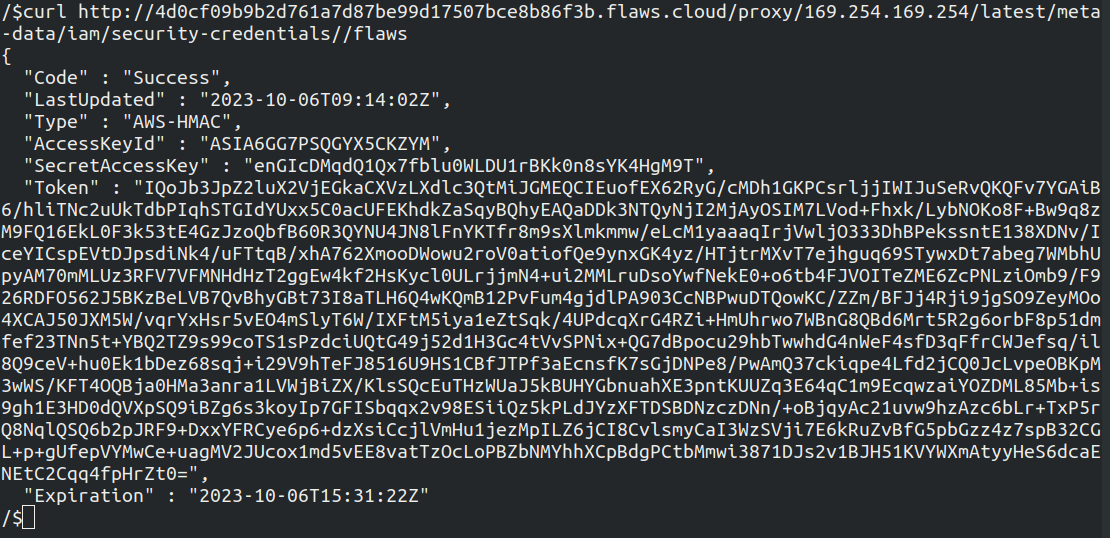

On navigating further through the different files, I found out there are credentials present which consist of Access Keys, Secret Keys, Token

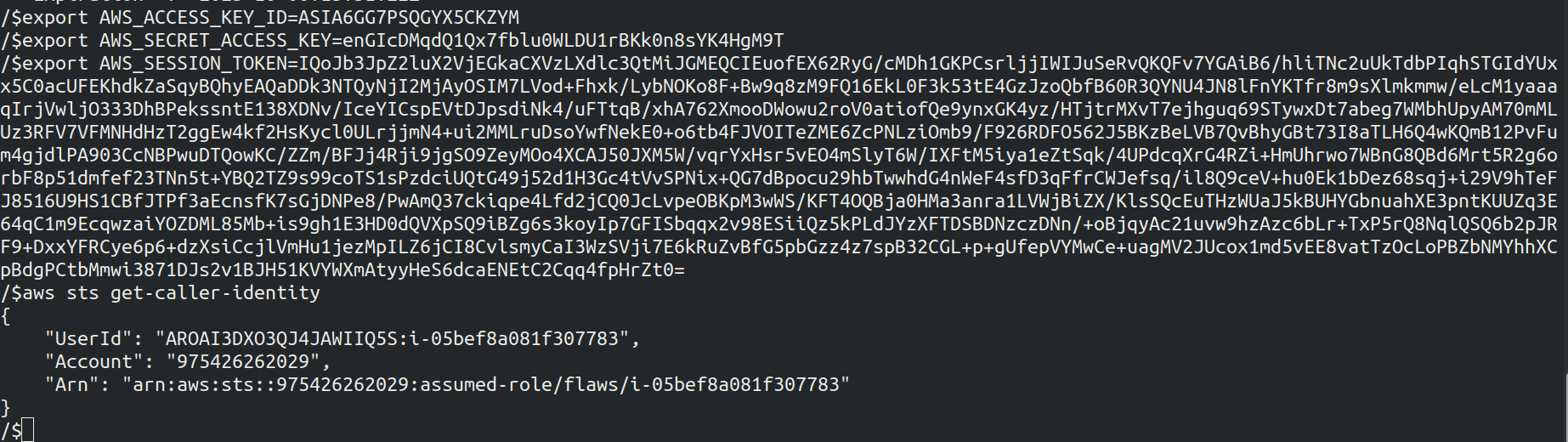

- Let's export these credentials and list the S3 files
After exporting the credentials, checked with caller identity.
It consists a role with the same name as the instance profile that is flaws and with the instance ID as session name

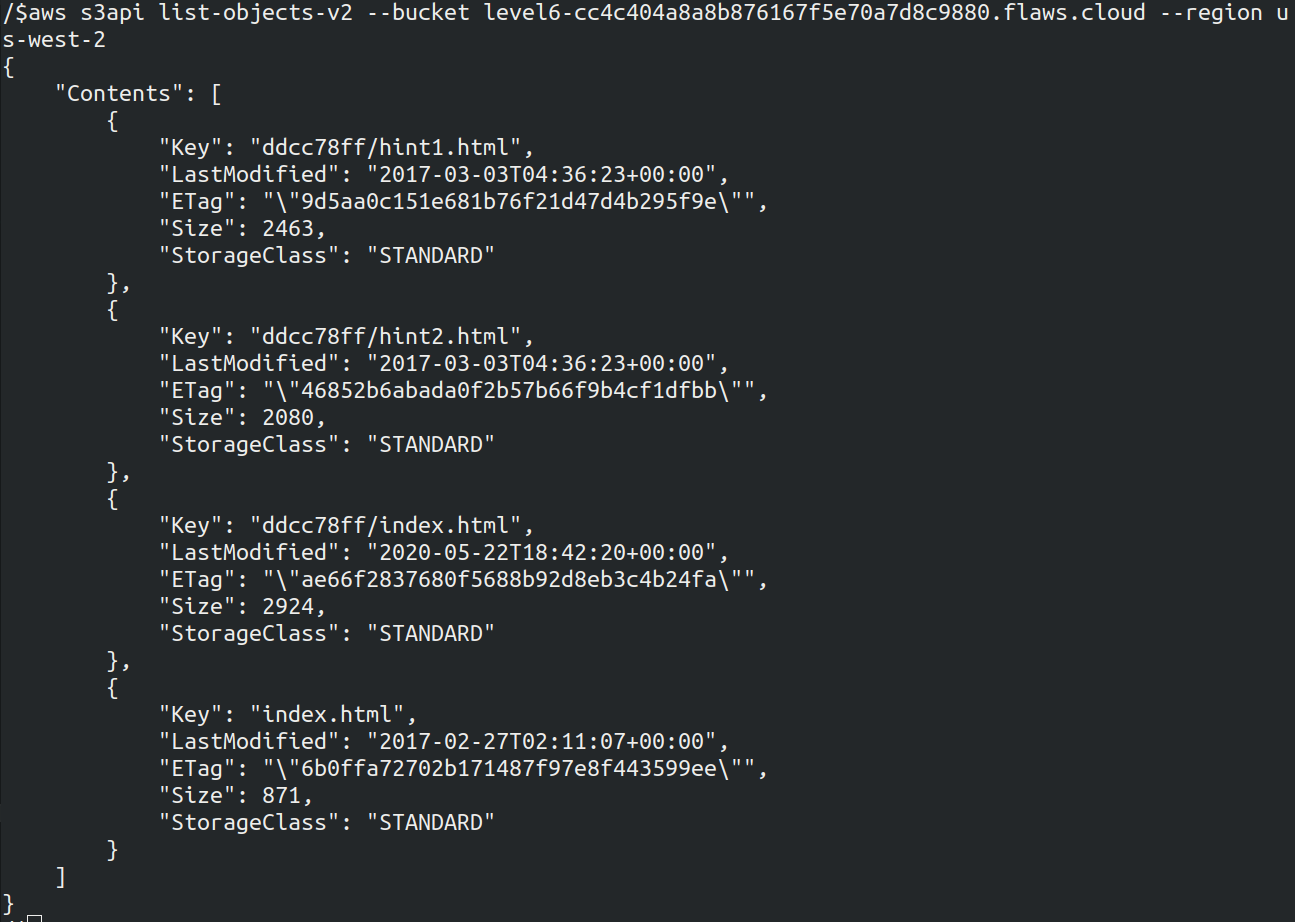

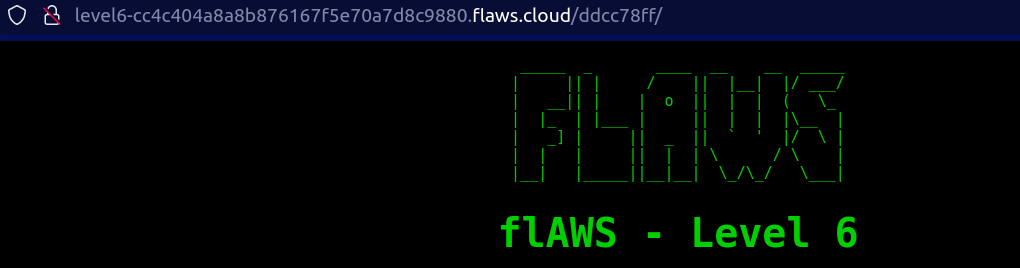

We got a hidden file names as
ddcc78ff which is the hidden directory we had to found. Now we got the URL to Level 6 -
Why this attack happened?
- One of the main reason was the proxy was not blocking requests to the metadata service.
- The least privilege should be followed in case the credentials are leaked then as well more critical information's are not disclosed
For this level the Access key and Secret key has been provided and the user has the security audit role, the aim is to find other details. What is security audit policy The security audit template grants access to read security configuration metadata. It is useful for software that audits the configuration of an AWS account.
- Let's add this to the credentials file in .aws on terminal using
aws configure --profile <profile-name>

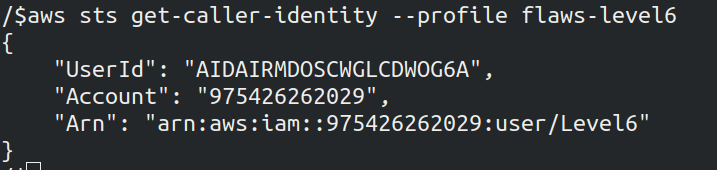

Now cross check using user identity command, also the username is

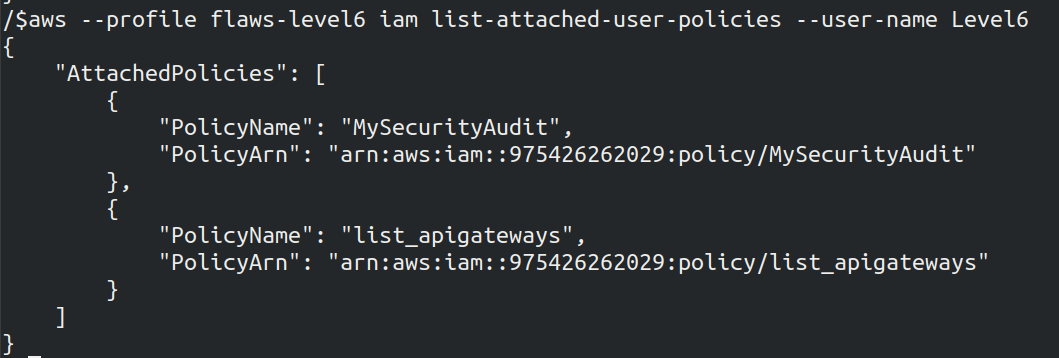

- Let's list the policies for the user
aws --profile <profile_name> iam list-attached-user-policies --user-name Level6
We got the details of two policies which are attached. Let's dig deep into more details of the policies

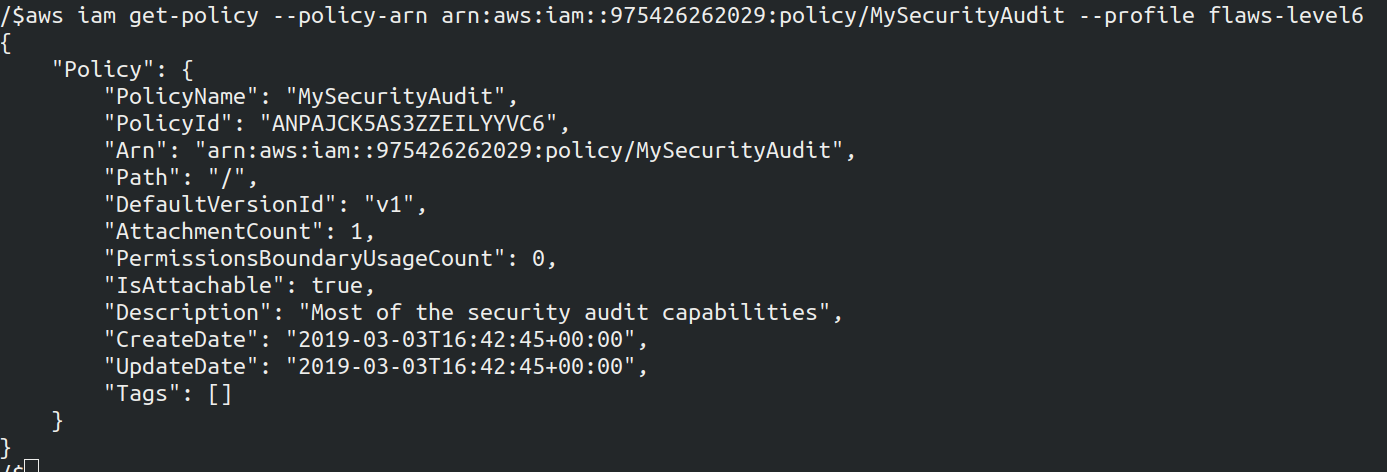

aws iam get-policy --policy-arn arn:aws:iam::975426262029:policy/MySecurityAudit --profile <name>
The version of the policy is v1

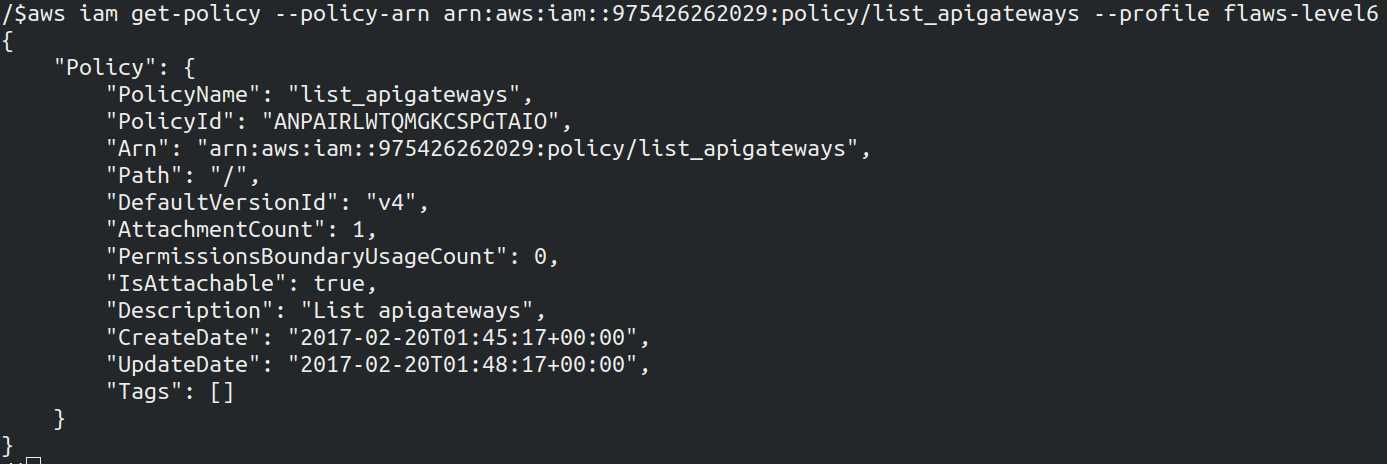

aws iam get-policy --policy-arn arn:aws:iam::975426262029:policy/list_apigateways --profile <name>
The version of the policy mentioned is v4
- As we have identified the version of the policy let's find more details

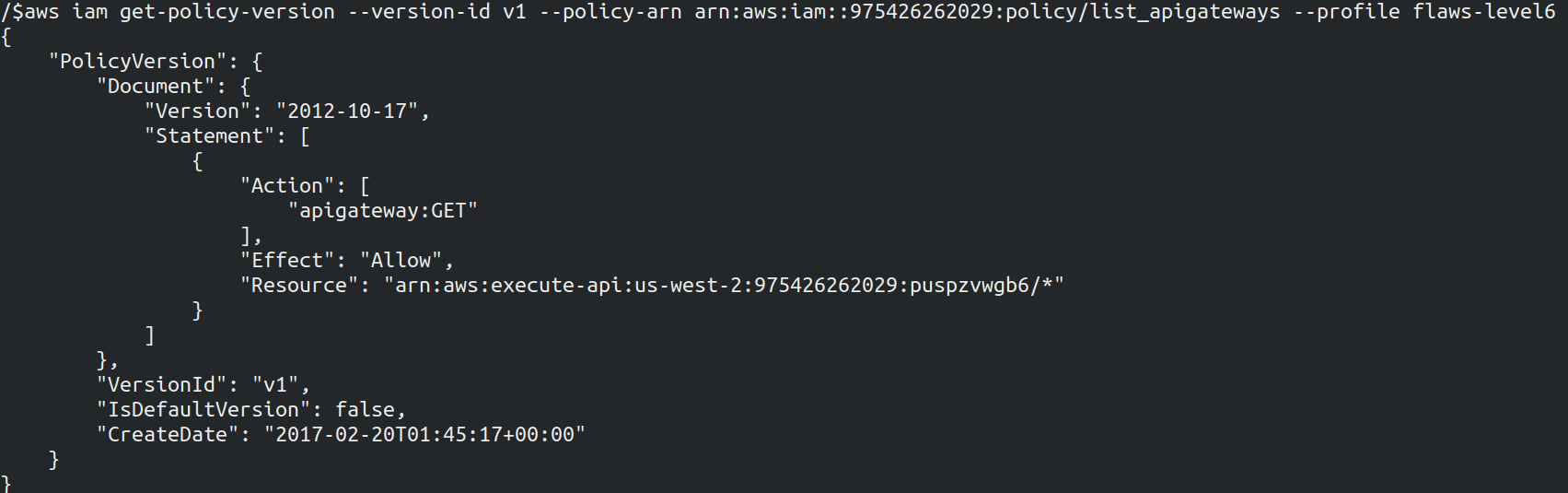

aws iam get-policy-version --version-id v1 --policy-arn arn:aws:iam::975426262029:policy/MySecurityAudit --profile <name>
aws iam get-policy-version --version-id v4 --policy-arn arn:aws:iam::975426262029:policy/list_apigateways --profile <name>
Policy 2 seems interesting as it allows any user or entity to perform GET action on any API Gateway resources in the region specified. The version of policy is mentioned as default as we can see in the screenshot, above which means that the policy is effective to any user/entity with appropriate IAM permissions

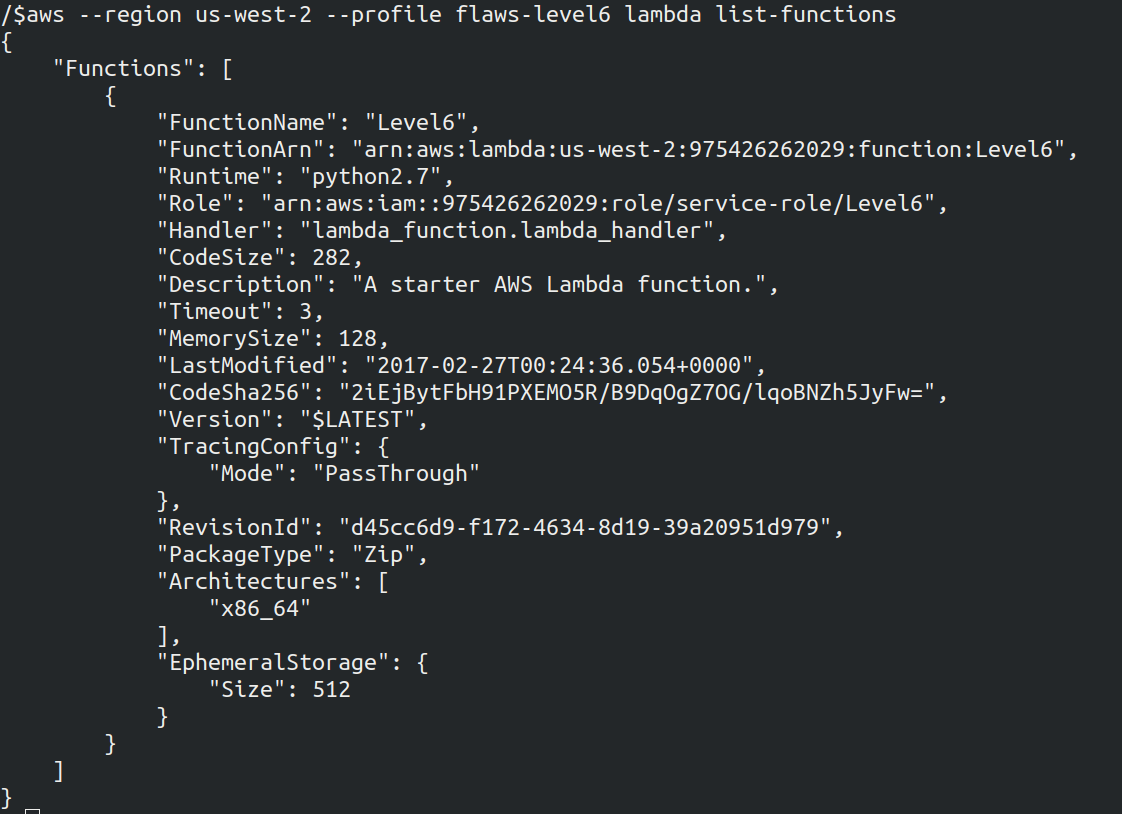

- Now we can use apigateway to GET - List Lambda Functions

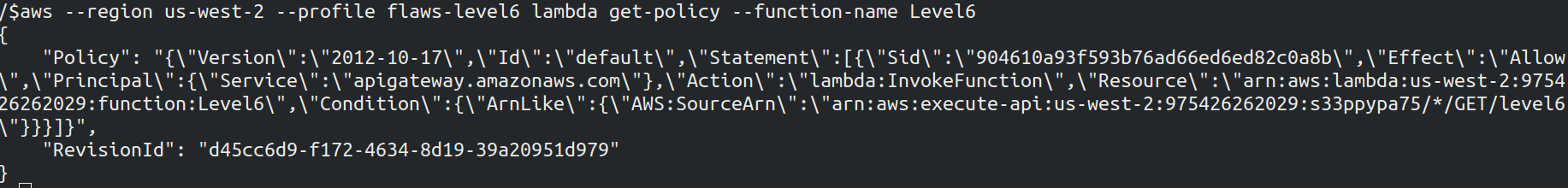

Also list the policy attached to the lambda
We can see the API ID that is
s33ppypa75 in the above policy screenshot
- Now after getting the API id let's invoke it

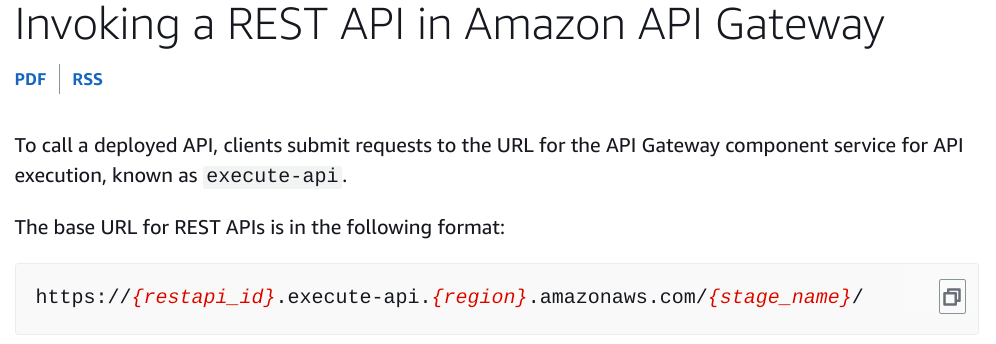

To invoke the API id we can run the below command as mentioned in AWS documentation

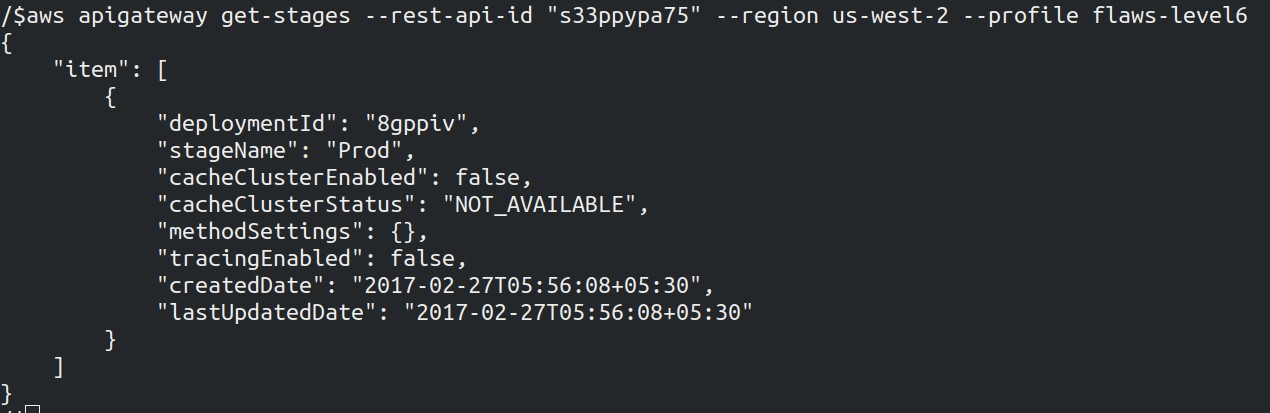

Still we have to figure out the stage name. To get the stage name run the below command
aws apigateway get-stages --rest-api-id "s33ppypa75" --region us-west-2 --profile <name>
The stage name is
As we have all the information we can construct URL

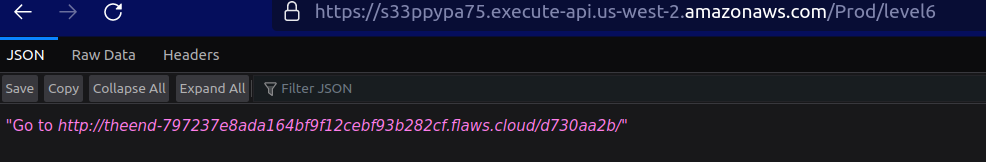

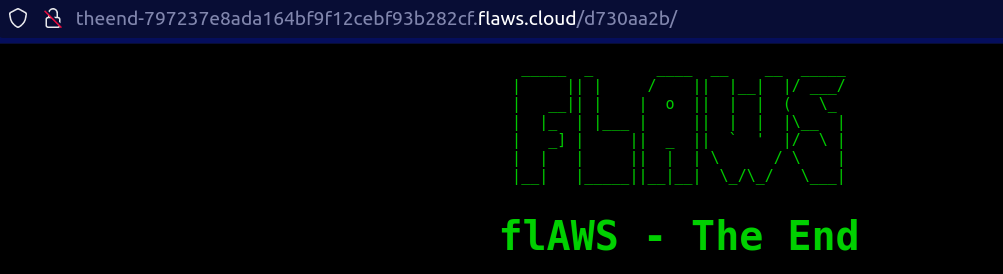

Once we go on the URL mentioned we can see the Level 6 is complete
Why this attack happened?
Again we need to follow least privilege principal to avoid as giving just simple read meta-data
We have completed with all the Flaws 1 labs. To read the next level that is Flaws 2 walk-through of both Attacker and Defender section over here https://www.devsecopsgirl.in/flaws2-walkthrough.
In this blog, again we will dive into the intriguing world of "Flaws Labs," a platform that simulates real-world attacks on AWS services. Our mission is to uncover these vulnerabilities, navigate through the attacks step by step, and diligently uncover the "flags" left in their wake. Through a detailed walk-through enhanced with screenshots, we'll decipher the tactics used by malicious actors, shedding light on why these attacks occur.
I have already completed Flaws 1 which if you havn't gone through can find over here.
At first we will cover the Attacker part and then the Defender part of Flaws 2 lab.
Aim of Level 1: Find the AWS keys and list the S3 bucket objects.
Let's go through the steps:

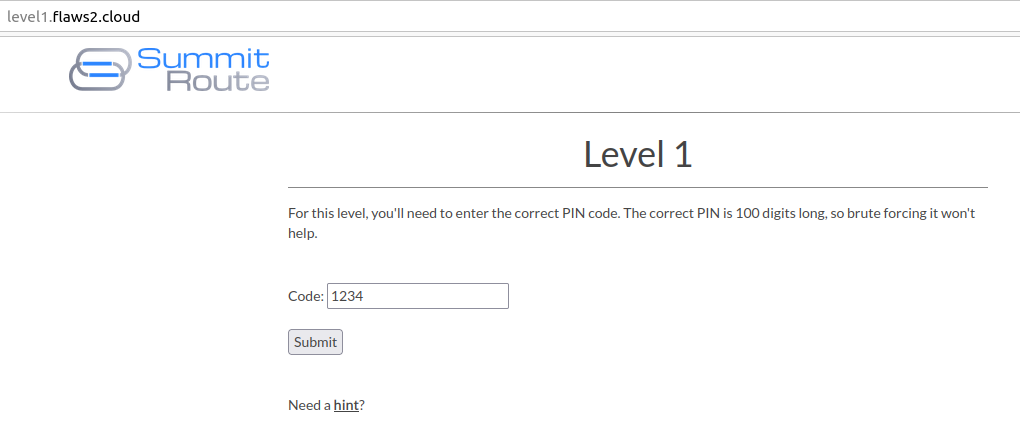

Open the Flaws 2 - Level 1 page http://level1.flaws2.cloud/ , over here you will see there is a column where you have to enter a pin code in the integer format.

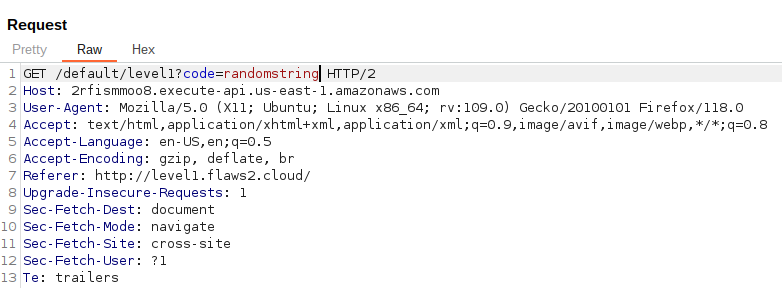

Let's intercept this request through BurpSuite and change the value
1234to some string, for ex. I entered

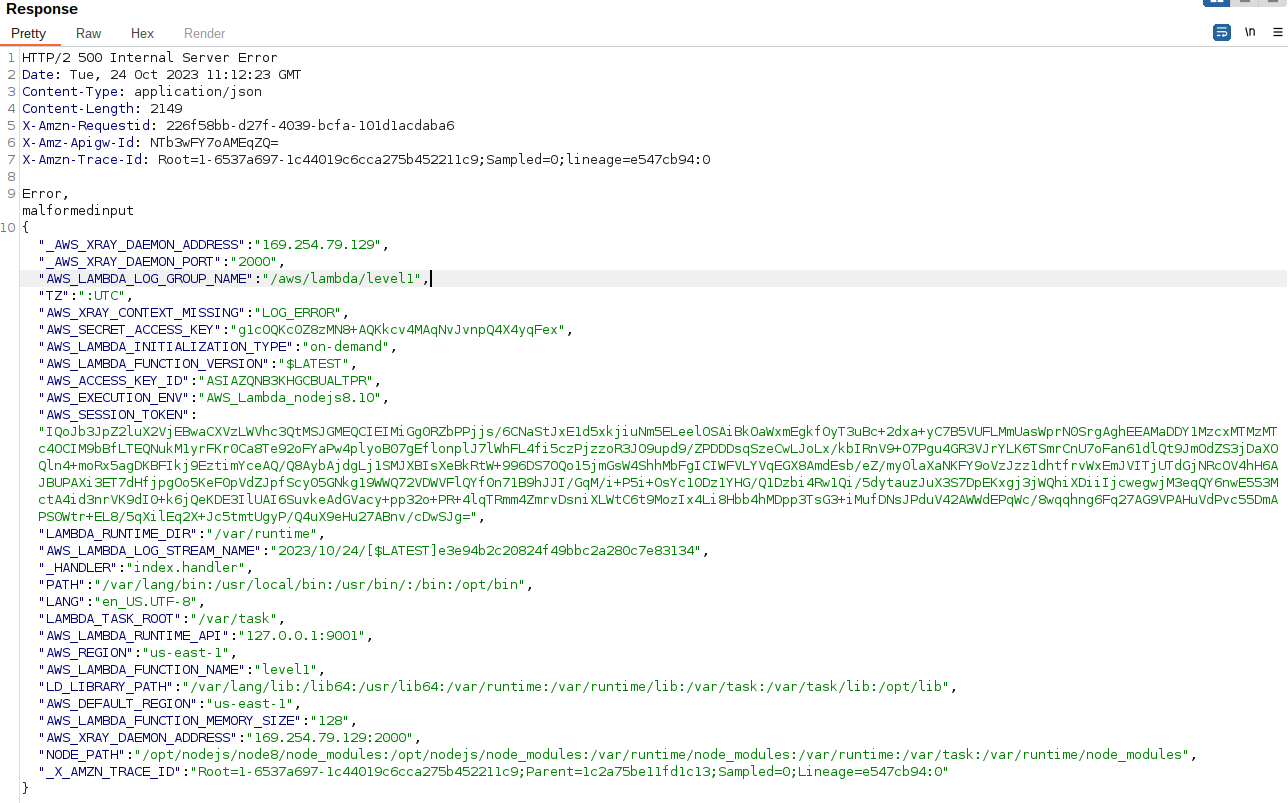

Once you forward the request you can see in the below screenshot, it gives error 500 as the code breaks and it gives lot of sensitive data. Once you will closely see the response you can see AWS keys are present.
Let's export the Access key, Secret key and Session token. After this run the caller identity command to check if the credentials are exported

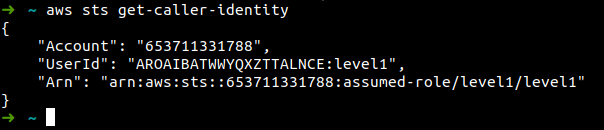

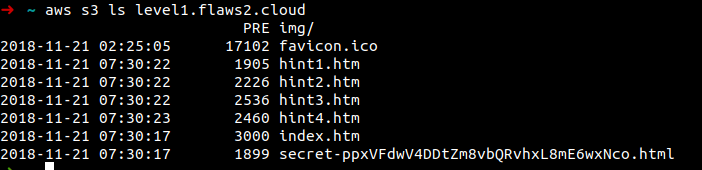

Once the AWS keys are exported. Now let's see what all information we can dig out from this. At first I tried to list the IAM users, describe ec2 instances, iam list roles but it showed the user is not authorised to do so. Let's try listing S3 objects, and it worked
So lets visit the site http://level1.flaws2.cloud/secret-ppxVFdwV4DDtZm8vbQRvhxL8mE6wxNco.html and here the lab is solved and the page opens with the level2 lab link.
Why this attack happened?
The IAM role has permission to be able to list the objects of the buckets. Therefore the IAM roles must be created on the principal of least privilege.
